CESTI B
All-Range, Wide Dispersion Bookshelf Loudspeakers
- CNC High density fibreboard construction for maximum acoustic stability
- Custom-designed symmetric-technology wide-range drive units
- High-end finishes and 3 color choices
- Proprietary shallow waveguide for maximum positioning flexibility
FREE SHIPPING WITHIN UNITED STATES
30 DAY TOTAL SATISFACTION GUARANTEE

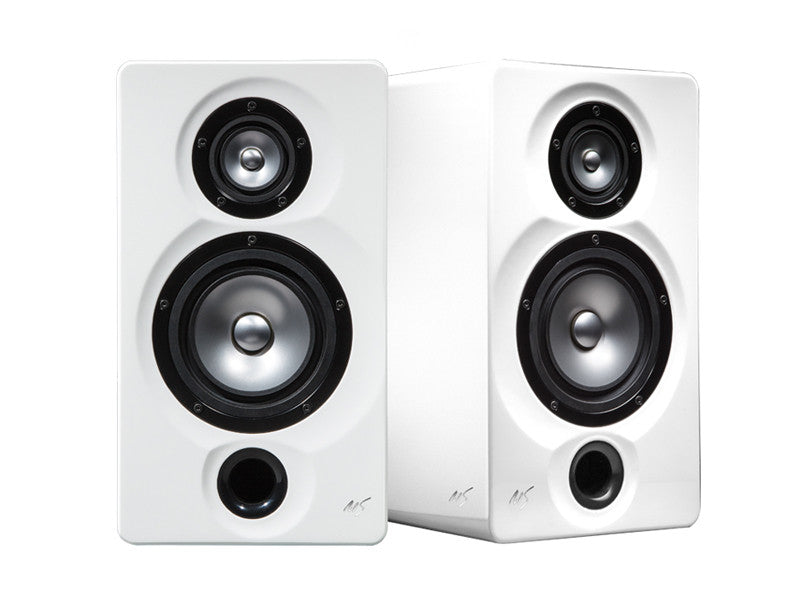

The Cesti B is our medium size 2-way loudspeaker utilizing our custom all-range symmetric driver technology to create a full range loudspeaker. A minimalist control network complements the custom drivers, delivering music to the listeners while minimizing artificial processing. Laminated dual-core panels and polymers provide enclosures of maximum strength and acoustic stability. The result is statement-level sound quality for the discerning listener.
Features
BUILT FROM THE GROUND UP
MarkAudio-SOTA loudspeakers are built from the ground up, including the cabinets, crossovers and speaker drivers. Many manufacturers choose off-the-shelf components that aren’t always a perfect match to their system design targets, MarkAudio-SOTA, purists by engineering standards, build their components to precisely match the specific design characteristics of the speaker systems.
ALL-RANGE DRIVER APPROACH
MarkAudio-SOTA’s unique dual-driver, all-range approach offers the rich midrange that is typical of a wide-range single speaker design, while providing a full frequency range extending from 40Hz to 25kHz, and the high-impact dynamics of more typical multi-way speakers. Using a custom-designed, 110mm (Sota 11) wide-range acoustically-isolated mid-bass driver, with a 50mm (Sota 5) tweeter, the drivers’ low mass mixed-alloy cone provides transparency and detail.
SYMMETRICAL SOUND FIELD
MarkAudio-SOTA uses its own symmetrical technology. The dual, wide dispersion, shallow-profile cone drivers replace conventional cone-woofer and dome-tweeter combinations. With their matched dispersion and output characteristics, along with a minimal crossover slope, the two custom-made Sota drivers provide an audibly seamless integration between high and low frequencies. This integration results in a smooth, natural output and soundstage that affords a wider range of seating positions, allowing several people to hear a top quality performance at one time.
ADVANCED CABINET ENGINEERING
All Cesti enclosures are constructed from high-density fibreboard giving maximum acoustic stability. The rigidity and mass of the panels are carefully balanced to avoid audible resonances and provide our custom drive-units with a solid platform. The Sota 5 high-frequency driver is isolated in its own sealed sub-chamber. The Sota 11 bass-mid works in the main vented enclosure volume. Our shallow waveguides are CNC machined into the front panel. The size and profile of these are designed specifically for the Sota drivers to maximise positioning flexibility.
CROSSOVER
The simple but elegant crossover design progressively transitions the higher and lower ranges of the audio signal to the driver optimized to handle that part of the spectrum. The 1.8kHz crossover frequency uses gentle 2nd order electrical and acoustic slopes that gradually blend the outputs, maximizing the advantages of our symmetric wide-dispersion drivers. The simple design, with few reactive components, also aids in amplifier matching, allowing MarkAudio-SOTA speakers to be easily driven by low-power designs.
STYLING
The Cesti B was developed by Mark Fenlon and styled by Ball Chan, a young designer recognised for his growing creativity. They incorporate the Italian influences from our flagship Viotti One loudspeaker with clean, minimalist industrial design. Our lacquer finishes are produced to a standard rarely seen at this price point. Our proprietary shallow waveguide helps to guide the sound-energy into the room and provides a unique, elegant visual feature. The protective grills are mounted using small rare-earth magnets fitted under the finish, eliminating unsightly fixings and preserving the clean, elegant lines should the user prefer to use them without the grills.
30 DAY TOTAL SATISFACTION GUARANTEE
We are so confident that you’ll have no problem getting great sound from your MarkAudio-SOTA loudspeakers that we offer you 30 days to order the speakers, get them home, set them up and listen to them before final decision. After purchasing your MarkAudio-SOTA speakers; you will have 30 days after the product shipment to try them out in your home. If the speakers do not perform to your satisfaction, simply call 844-202-4278 to receive your return authorization information. Please use the factory packaging materials to repack the speakers and send back to us. The shipping charge will be your obligation to pay.
Technical Specifications
DESIGN:
2 drivers, 2 way, book shelf speaker
FINISHES:
Black
White
Red
DRIVER UNITS:
1 x 50mm (2 inch) low mass mixed alloy symmetical sound field cone unit (Sota 5)
1 x 110mm (4.4 inch) low mass, long throw mix alloy symmetical sound field cone unit (Sota 11)
FREQUENCY RANGE ±6dB:
40Hz – 25KHz anechoic
SENSITIVITY (1w @ 1 m):
87dB
IMPEDENCE (Norminal):
6 Ohms
CROSSOVER:
2nd order shallow slope design @1.9kHz
AMPLIFIER REQUIREMENTS:
These recommendations can only be used as a guide. Over-driving the loudspeakers risks damaging the drive units
Class A/B @ 8 Ohm Per Channe:
50W to 100W
Class A @ 8 Ohm Per Channel:
12W to 25W
Class D @ 8 Ohm Per Channel:
30W to 60W
DIMENSIONS (Each):
230mm x 236mm x 410mm
9 1/16in x 11 1/32in x 35 7/16in
WEIGHT (Each):
8.5 kg
20 lb
